Standard Model Feedwagon

Superior, Dependable Machinery Since 1945

The easiest, lowest-cost feedwagon available!

Control feed placement with less spillage or over-filling

Benefits

  • • A workhorse in countless feedlots and dairies across the US
  • • Over 30,000 in daily use
  • • Ingredients are blended as they are unloaded
  • • Trouble-free chain and flight action
  • • All-steel welded construction
  • • Chain speeds are engineered to blend ingredients as they unload

Box Size 4' x 10' 4' x 12' 5' x 12' 5' x 14'
Weight 1,800 lb. 2,160 lb. 2,680 lb. 3,900 lb.
Overall Length 182" 206" 213" 240"
Overall Width 80" 80" 92" 92"
Discharge Height 48" 48" 48" 50"
Leaf Springs Optional Optional Optional Standard
Capacity 115 Bu. 140 Bu. 190 Bu. 250 Bu.

Standard Features

  • • Strong apron chain (pintle on 5' widths) where a slow, steady drag is required
  • • Lift chain is high-speed roller for smooth action and long life
  • • High-strength axles, spindles and hubs
  • • Oil bath gearbox
  • • Shear pin PTO

Optional Features

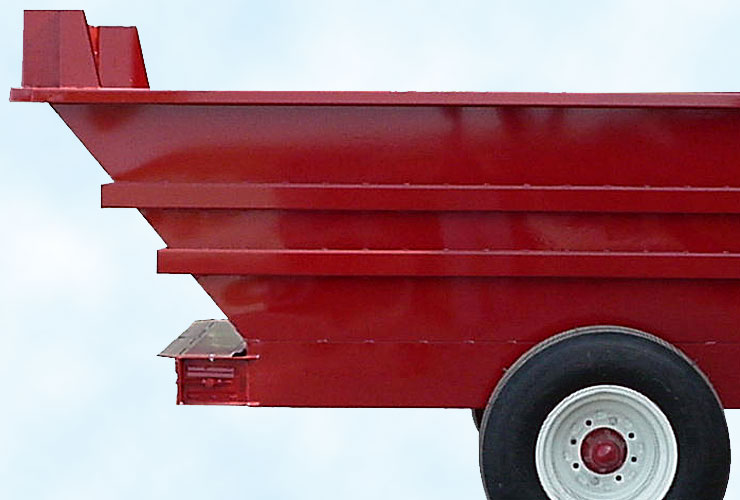

  • • Bunk rail
  • • Flotation tires
  • • Scoop rack
  • • Electronic scales
  • • Cross conveyor extension
  • • Fenders
  • • Plastic floor
  • • Stage coach rear end

See our other products.

By offering the most up-to-date equipment, we keep our customers in step with the ever-changing agriculture market.
